TANA Shark EM waste shredder

Electric Semi-trailer

Lower operating costs and zero emissions

Mobility saves you time and money

Produces 6 dB less sound than a diesel shredder

Robust construction, engineered for shredding the most demanding and difficult materials

Download brochure

Designed for shredding the widest range of materials

TANA Shark EM fully electric industrial waste shredder offers the same TANA versatility and reliability but is more environmentally friendly in terms of emissions and noise. The electric TANA Shark replaces the diesel engine by two electric motors. The operator can plug the machine into their power supply or use a power unit.

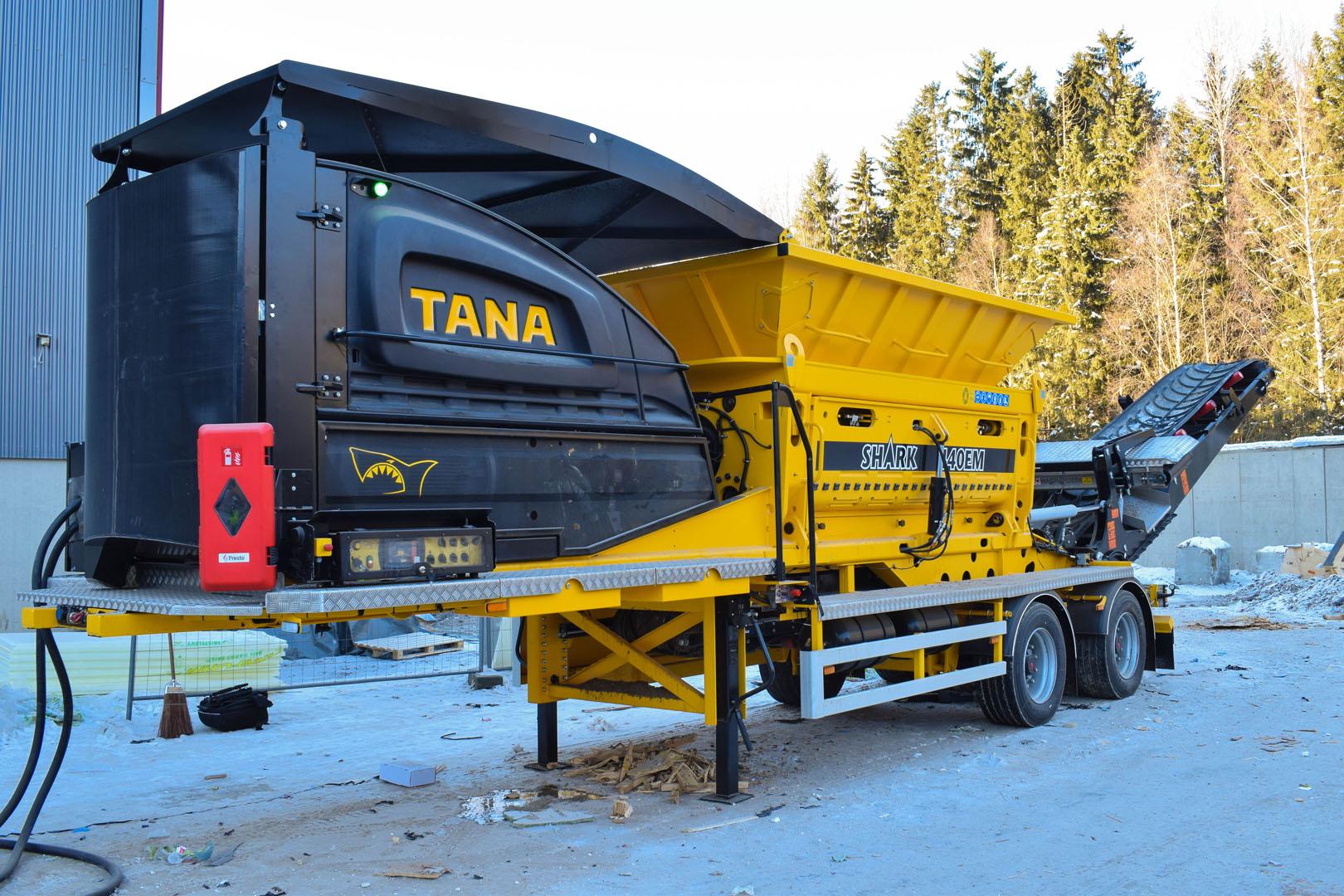

The TANA Shark EM is a semi-trailer model, allowing a single machine to be moved between stacks and areas within your facility so. This puts its versatility to even better use and eliminates the need to move waste around, saving both time and money. It can even be moved between sites, eliminating the need to purchase a separate shredder for each site.

Large variety of customisation options – make it your own

  • Robust construction – gets the job done in toughest operating conditions and with toughest materials
  • Screens available – many sizes, desired particle size with one pass
  • Selection of rotors available – durability, performance, ease of maintenance
  • Easy access for maintenance – safe and quicker maintenance
  • TCS material programs – preset but available for adjustment
  • Reduced operating costs – service interval 500 hrs and clean electric use
  • Adjustable conveyor angle – 30° ± 10°, doesn’t have chains
  • Touch screen display – user friendly interface for the operator
Rated power (SAE J1995) 2 x 160 kW / 2 x 175 kW
Nominal torque 440 kNm
Rotor length 3000 mm
Rotor max. speed 26 rpm
Rotor diameter 920 mm
Rotor knives, pcs 33 knives or 44 knives
Screen options 50mm, 76mm, 3D 76mm, 90mm, 100mm, 109mm, 3D 109mm, 120mm, 130mm, 167mm, 220mm, 275mm, special tyre shredding screen
Emissions Close-to-zero emissions

Options to choose, below listed some examples:

  • Rotors
    • With or without wear plates
    • 33/44 knives
  • Material configuration
    • Bolt on cleaning combs (short/long)
    • Magnet (Standard or HD), hydraulic position adjustment
    • Oil resistant belt
  • Ease of everyday use
    • Engine heater
    • Hydraulic oil heater
    • Automated Central lubrication
    • Central lubrication
    • Dust suppression
    • Trickle charger
    • Electric support legs
    • Electric fuel tank filler pump
  • Security / safety
    • Extinguishers & Extinguisher system
